Vélkynning:

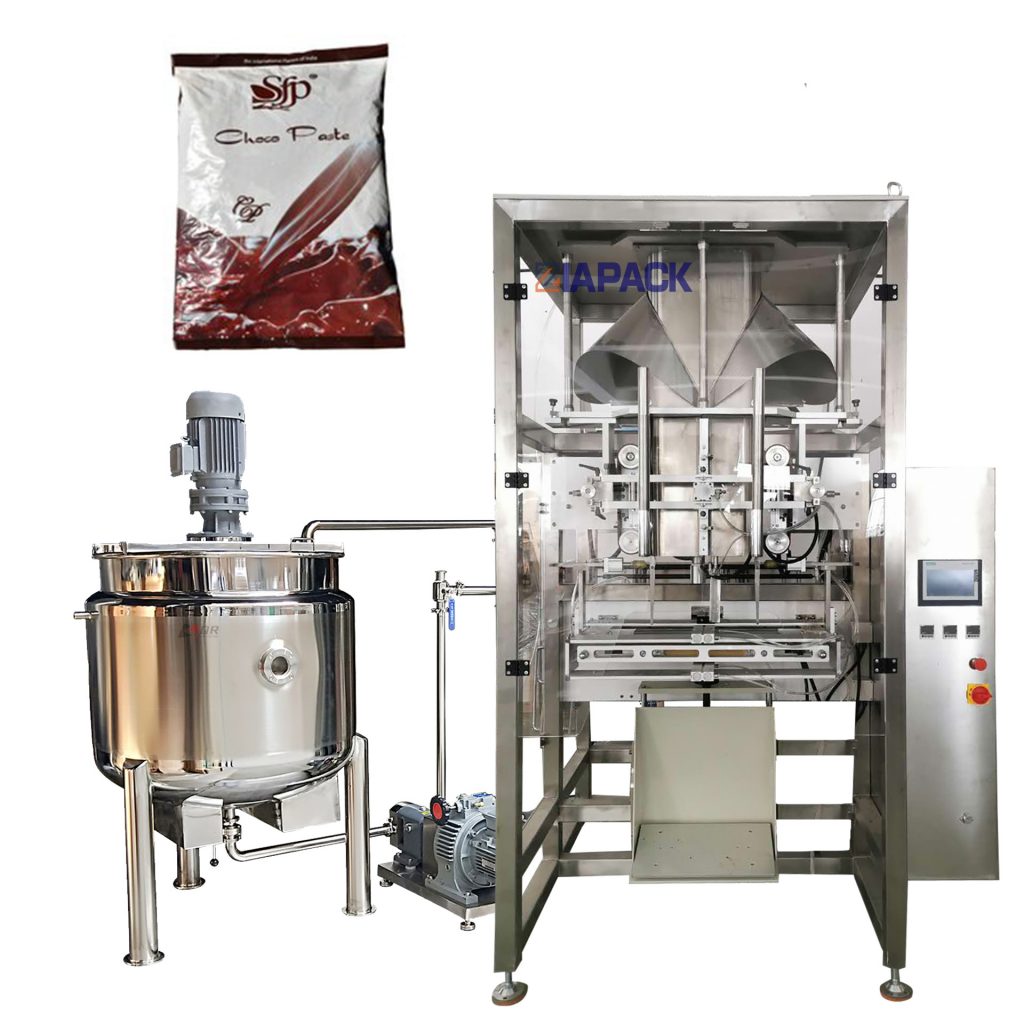

Þessi vélaeining er sérhönnuð til að pakka litlum sósuvörum eins og tómatsósu, chilisósu, fiskimjöli og svo framvegis. Vélin getur sjálfkrafa búið til pokann, vigtað vöruna, fyllt vöruna í pokann og síðan gefið út færibandið. eru stjórnað af PLC og geta starfað á snertiskjá. Auðvelt að stilla og viðhalda.
Lögun
● Innbyggt með stimplafylli, servódælu, snúningsdælu og öðrum skammtatækjum
● Stórt úrval frá 50ml upp í 10Litre
● Various pack style including pillow packages
● Sérsniðin til að uppfylla framleiðsluþörf þína

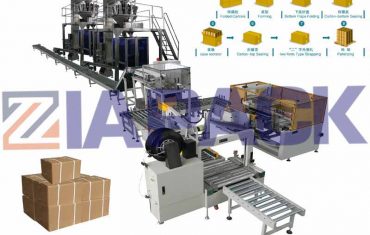

● Sjálfvirkur öskjupakkningakerfi til að ljúka pokanum í öskju umbúðir er mjög duglegur

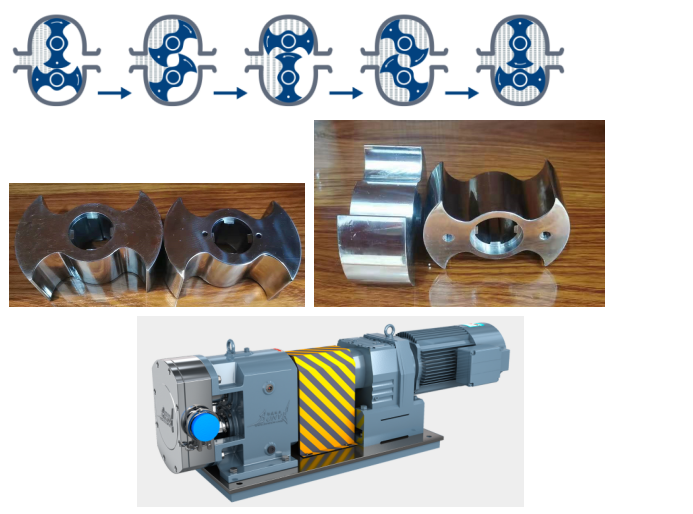

ZL20K Rotary type measuring pump (Bi-wing rotors )
Kynning :
Displacement: positive displacement pump, flow rate up to 400m³/H
Pressure: The pressure can reach 1.2Mpa.
Self-priming: suction vacuum up to -0.098Mpa
Efficiency: up to 90%
Friction-free: There is a certain gap between the rotor and the rotor, between the rotor and the pump body, no friction, long service life
Maintenance: simple disassembly and assembly, convenient maintenance and cleaning, small space occupation and few wearing parts
Feature :
High sanitation: The wetted parts are manufactured in stainless steel 316 or 316L.
Using Panasonic servo motor for keep high speed and accuracy
High smoothness: surface roughness is below 0.8 μm, confirming to 3A, EHEDG, FDA standard.
Meet CIP and SIP requirements.
Simple disassembly and asembly, easy maintenance and few wearing parts.
Low speed, low shear, no damage to the pumped products.
